| Supply Ability : | 100PCS/Year |

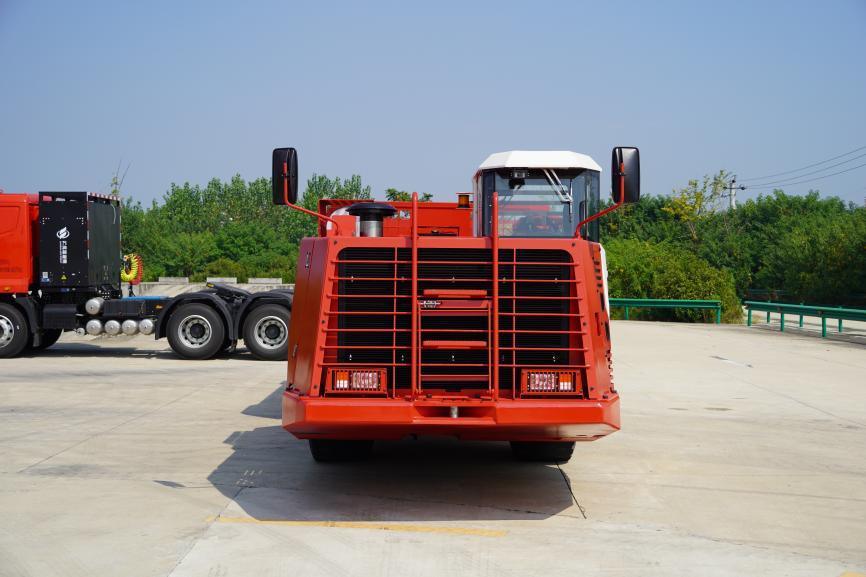

| Item | Unit | St54 Underground Mining Truck | ||
| Capacity | Standard Bucket | M³ | 28 | |
| Operating Weight | Kg | 46500 | ||
| Tramming Capacity | Kg | 54000 | ||
| Traction Force | Kn | 540 | ||
| Unloading Size | S | 14 | ||
| Configuration | Drive Model | 4×4 | ||
| Transmission Model | Hydraulic& Mechanical Transmission | |||
| Brake Model | Working Brake | Spring Applied And Hydraulic Released Equipment | ||
| Parking Brake | Spring Applied And Hydraulic Released Equipment | |||
| Equipment Size | Dimension | Mm | L | 11680 |
| W | 3250 | |||
| H | 3190 | |||
| Ground Clearance | Mm | 370 | ||
| Wheelbase | Mm | 5850 | ||
| Turning Radius | Mm | Inner | 5150 | |
| Outer | 9751 | |||
| Bucket Height | Mm | 6950 | ||
| Performance | Speed | Km/H | 1st gear | 5.5 |
| 2nd gear | 8 | |||
| 3rd gear | 11 | |||
| 4th gear | 16 | |||
| 5th gear | 23 | |||
| 6th gear | 31 | |||
| Gradeability | % | 25 | ||
| Diesel engine | Model | Volvo Tad1672Ve | ||
| Power | Kw | 515 | ||
| Torque | Nm | 3200 | ||
| Engine Speed | Rpm | 1800 | ||
| Displacement | L | 16.1 | ||
| Fuel Injection System Form | Common Rail | |||
| Emissions | Euro Stage Iv | |||
| Fuel Tank Refill Capacity | L | 715 | ||
| Configuration | Converter | Allison 6625 | ||
| Axle | Kessler D111 | |||
| Tire | 35/65 R 33 | |||
| optional | Automatic Central Lubrication | Lincoln | ||
| Centralized Fire Extinguishing System | Ansul | |||
1. Q: What kind of terms of payment can be accepted?
A: Normally we can work on T/T and other terms is also negotiable.
2. Q: Which incoterms 2010 terms can we work?
A: Normally we work on FOB, CFR, CIF, EXW.
3. Q: What about the delivery time?
A:It depends on the model, usually 2-6 months after receiving the deposit.
4. Q: What about the warranty time?
A: In12 months after shipment, o within 2000 hours of equipment operation, we can provide the free
repair service.
5. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 set.
6. Q: Could you stick customers' brands on the products?
A: We warmly welcome the OEM orders.
| Technical data | Undergroung Loader SL14 |
| Dimension (L-W-H) | 10.9m*2.85m*2.55m |
| Capacity | 14000kg |
| Standard Bucket | 6m³ |
| Weight (operating) | 38900kg |
| Hydraulic breakout force - lift | 240kN |
| Hydraulic breakout force - tilt | 315kN |
| Engine power | 256kW |
|
|
