Chinese Supplier Cost Effective Heavy Duty ST30 Underground Mining Tipper Truck

Product Description

Chinese Supplier Cost Effective Heavy Duty ST30 Underground Mining Tipper Truck

Shentuo ST series trucks are mainly used in underground non-coal mines, mainly for transporting mine materials after blasting, but also for roads, railroads and other narrow, low, harsh environment of the tunnel project. The core parts of this series of trucks are all international famous brand products, with compact structure design, strong power and stable performance. It is comfortable to drive and efficient in transportation.
Chinese Supplier Cost Effective Heavy Duty ST30 Underground Mining Tipper Truck

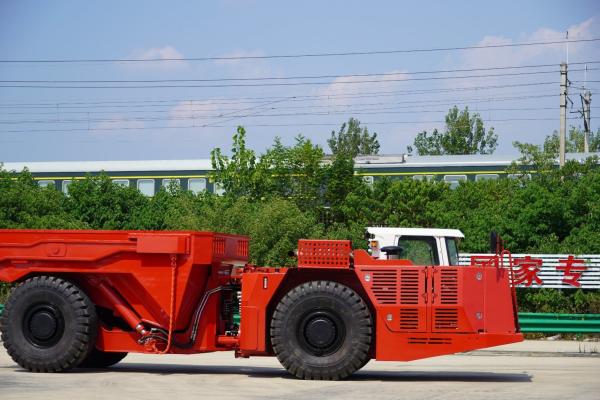

The ST30 truck is an underground mining truck with 30 tons capacity. It has innovative features that can easily cope with harsh conditions and provide great power, strength and reliability to help you maximize your productivity.

Designed to withstand harsh underground environments, the heavy-duty front and rear frames provide superior quality, reliability and durability to meet user requirements, making transportation simpler and more efficient.

	Item	Unit		ST30 Underground Mining Truck
Capacity	Standard Bucket	m³		15
	Operating Weights	kg		29500
	Tramming Capacity	kg		30000
	Breakout Force	kN		330
	Traction Force	s		14
Configuration	Drive Model			4×4
	Transmission Model			Hydraulic transmission
	Brake Model	Working Brake		Spring Applied and Hydraulic Released Equipment
		Parking Brake		Spring Applied and Hydraulic Released Equipment
Equipment Size	Dimension	mm	L	10235
			W	2920
			H	2580
	Ground Clearance	mm		395
	Wheelbase	mm		5520
	Turning Radius	mm	inner	4650
			outer	8560
	Bucket Height	mm		5440
Performance	Speed	km/h	1st gear	6
			2nd gear	11
			3rd gear	19
			4th gear	32
	Gradeability	%		25
Diesel Engine				VOLVO TAD1362VE
	Power	kW		315
	Torque	Nm		2140
	Engine Speed	rpm		1900
	Displacement	L		12.8
	Fuel Injection System Form			Common rail
	Emissions			Euro stage III
	Fuel Tank Refill Capacity	L		550
Configuration	Converter			DANA C8000
	Transmission			DANA 6000
	Axle			DANA 20D
	Tire			26.5R25 E4
Optional	Automatic Central Lubrication			LINCOLN
	Centralized Fire Extinguishing System			Ansul/Protecfire
	Emissions			Euro Stage IV

Hubei Shentuo Intelligence Equipment Co., Ltd. is a wholly-owned subsidiary of Yimu Intelligence Technology Co., Ltd. and consists of Hubei Suizhou production plant and Wuhan R&D center, which is a technology-based enterprise focusing on the research and development, production, sales, after-sales and export of underground equipment for coal and metal mines, aiming at the global market with its products.
Shentuo Intelligence is based on scientific and technological innovation and oriented to customers' needs. Currently, Shentuo Intelligence has a new generation of concrete mixer trucks, loaders, mine trucks and other series of diesel and purely electric models, which can adapt to customers' mining needs in a variety of situations, improve the productivity and economic benefits of mining, and strive to improve the sense of safety and happiness of underground workers.

Shentuo Intelligence adopts advanced quality management system to provide first-class quality underground equipment: at the same time, Shentuo Intelligence adheres to intelligent manufacturing, and builds up the leading manufacturing capacity of underground equipment industry through advanced ERP and informationization system to ensure the delivery cycle. In the future, Shentuo Intelligence will continue to be committed to all-round innovation, provide the most intelligent and efficient technology and products for the domestic and international mining industry, and make continuous efforts to promote productivity enhancement, industry development and ESG construction!

Chinese Supplier Cost Effective Heavy Duty ST30 Underground Mining Tipper Truck

1. Q: What kind of terms of payment can be accepted?
A: Normally we can work on T/T and other terms is also negotiable.
2. Q: Which incoterms 2010 terms can we work?
A: Normally we work on FOB, CFR, CIF, EXW.
3. Q: What about the delivery time?
A:It depends on the model, usually 2-6 months after receiving the deposit.
4. Q: What about the warranty time?
A: In12 months after shipment, o within 2000 hours of equipment operation, we can provide the free repair service.
5. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 set.
6. Q: Could you stick customers' brands on the products?
A: We warmly welcome the OEM orders.
